G thread diesel engine radiator liquid level sight glass stainless steel

Stainless Steel Oil level sight glass
water flow sight glass indicator with floating ball
fire fighting pipe fitting liquid flow sight gauge
Material Body: Stainless steel 304,SS 304L,SS 316, 316L
Used for Pump,Oil Receivers,Gearboxes,Speed Reducer,
Heavy duty radiators,Compressor and Power Transimission.

Inquiry Now

Description

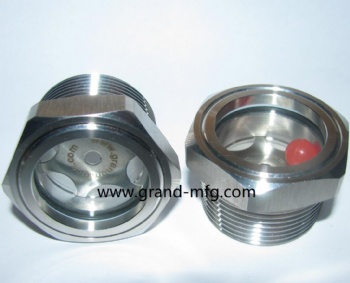

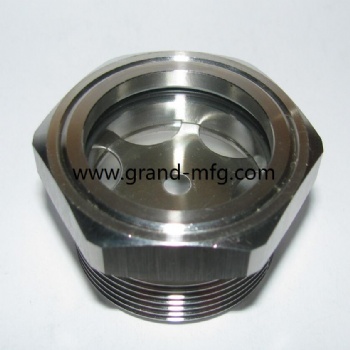

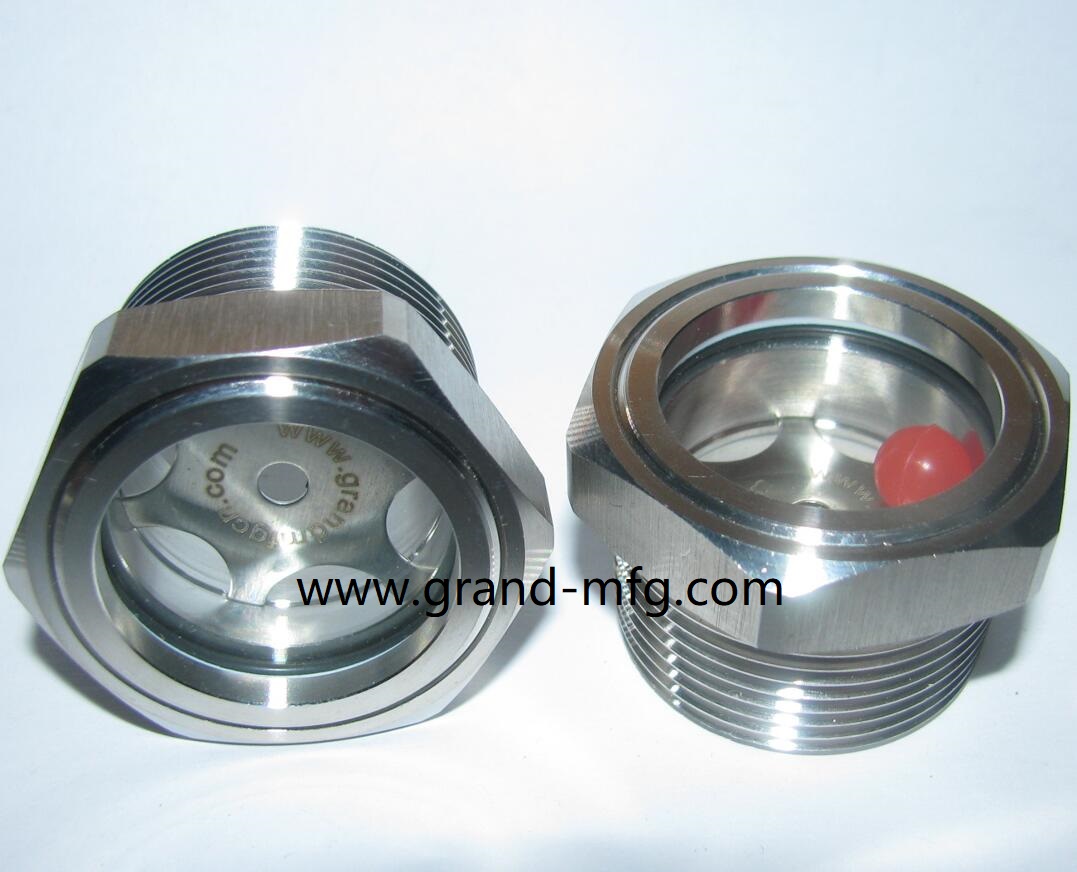

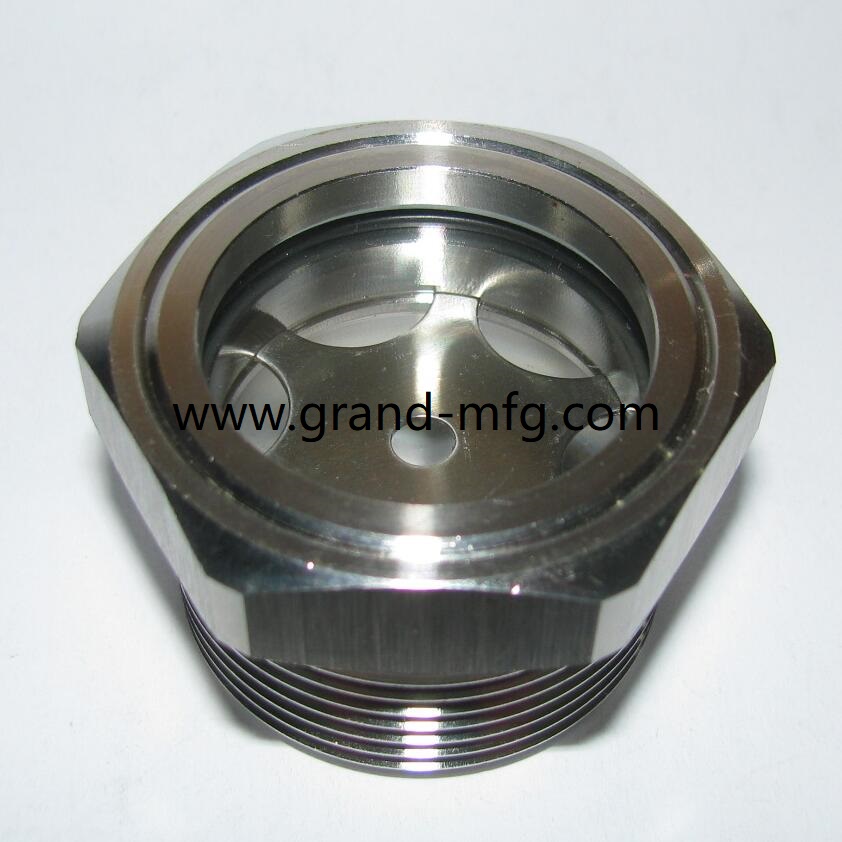

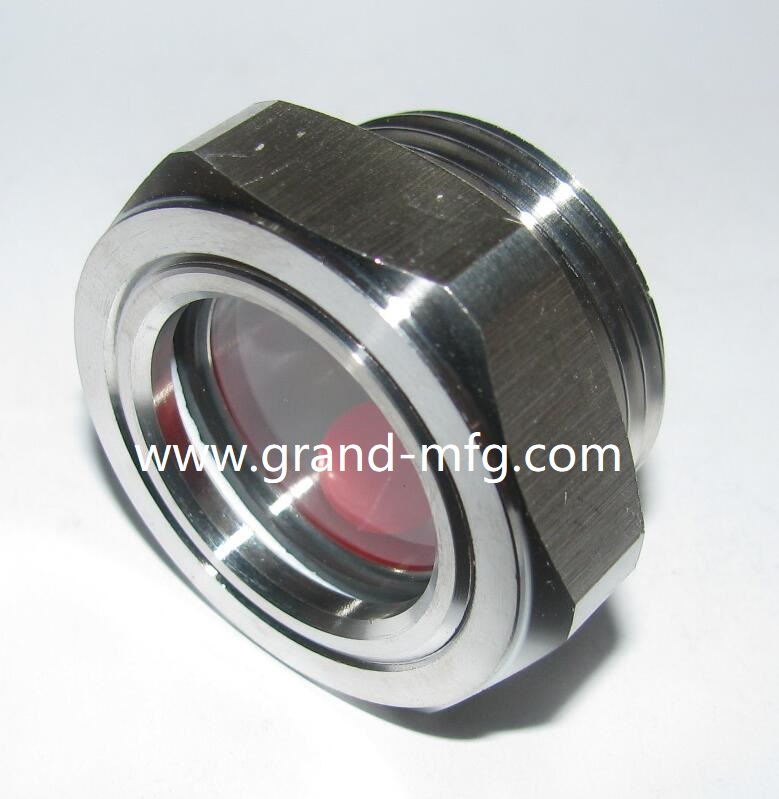

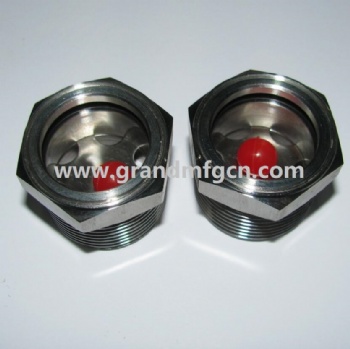

Stainless Steel Liquid level sight glass

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket，Silicone Rubber,and Copper seal

Glass Thickness: 2mm to 8 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 220'C

Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

bsp thread stainless steel liquid sight glass.JPG
