Industrial Boiler ss304 stainless steel liquid oil sight glass supplier


Stainless Steel liquid sight glass
Material Body:   Stainless steel 304,SS304L,SS 316,SS 316L.
Used for Pump,Oil Receivers,Gearboxes,Speed Reducer,
Heavy duty radiators,Surge tank coolant expansion tank,
Compressor and Power Transimission.

Inquiry Now

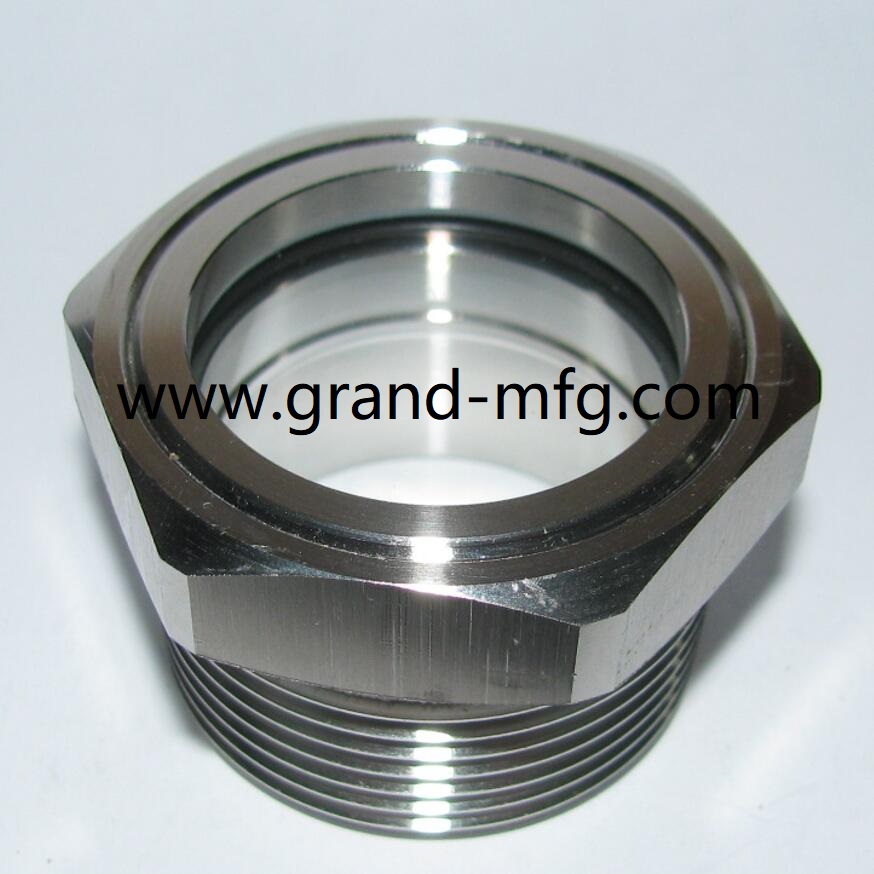

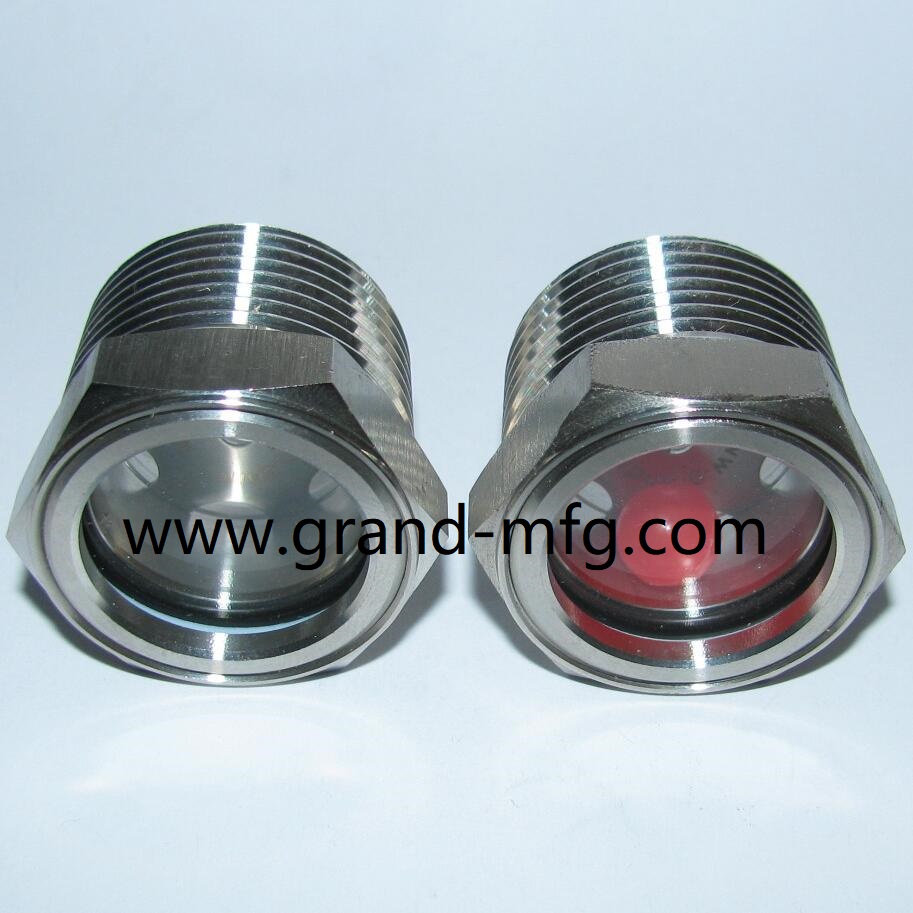

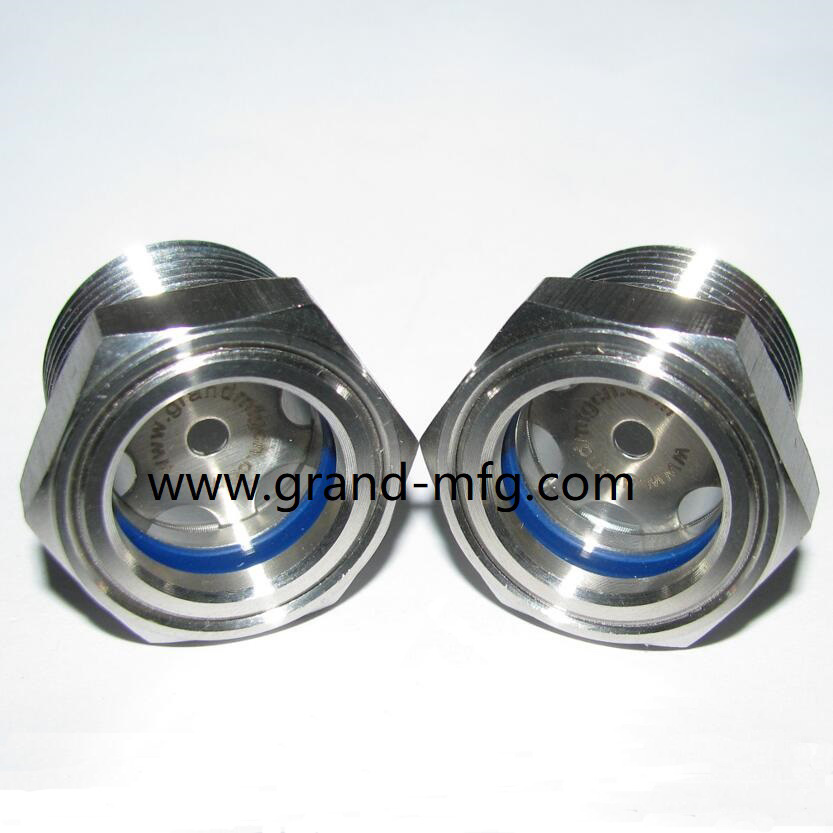

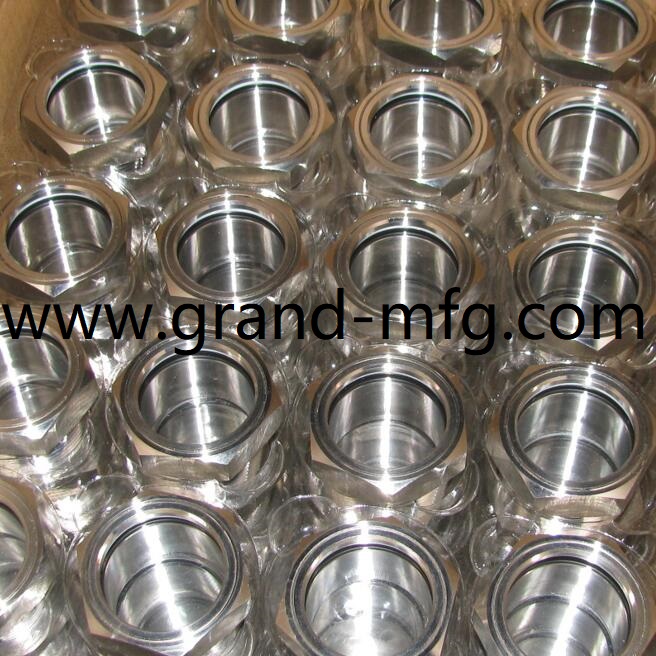

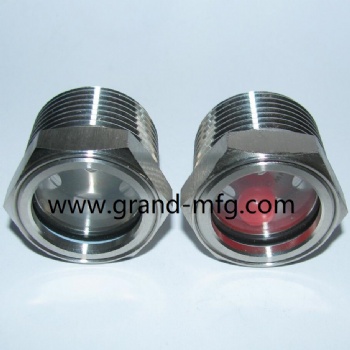

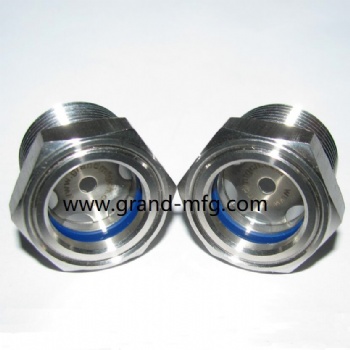

Stainless Steel Oil level sight glass

Material Body:   Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,
FKM,FPM,NBR, Aramid gasket,Silicone Rubber,and Copper seal


Glass Thickness: 2mm to 8 mm

Reflectors: Stainless Steel 304 Reflector

                 (Any type you can chose with reflector or without Reflector,  You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 220'C

Pressure Range:  5-120 Bar(0.5MPa to 12 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage:  Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.


LINK IN :    GO TO GRAND-MFG CATALOGUE

LINK IN:   MORE DESIGNS OF OUR SIGHT GLASSES





ANY SPECIAL DEMANDS JUST PLEASE CONTACT US.
