M27X1.5 power reducers brass oil level sight glass

M30X1.5 power reducers brass oil level sight glass

Brass oil level sight glass plugs for air compressor
M16X1.5 M18X1.5 M20X1.5

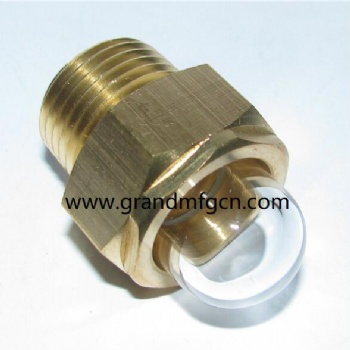

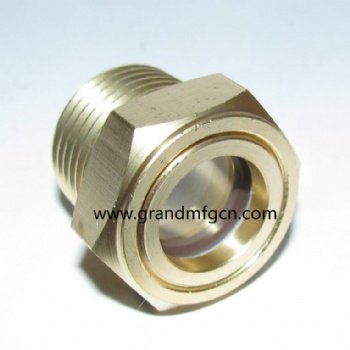

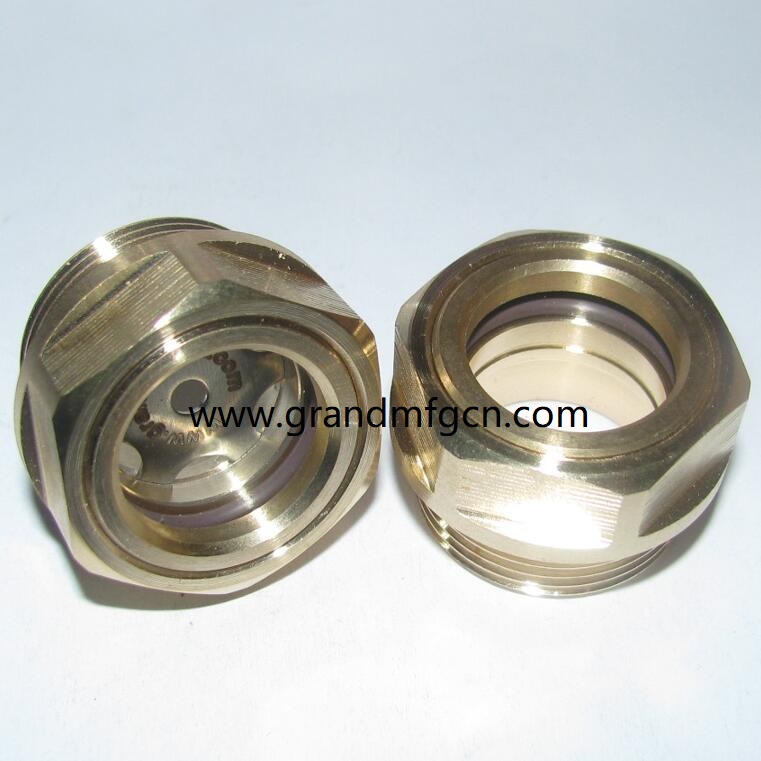

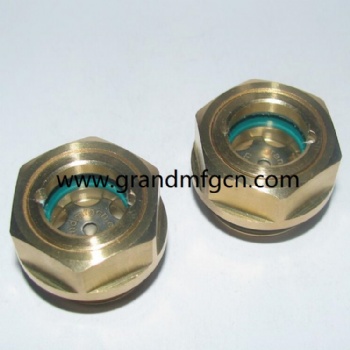

Brass Oil level sight glass
Material Body: Brass
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Inquiry Now

Description

Brass Oil level sight glass Metric thread M30*1.5 M33*1.5 M36*1.5 M42*1.5 M48*1.5 M52*2 M60*2
Material Body: Brass
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
