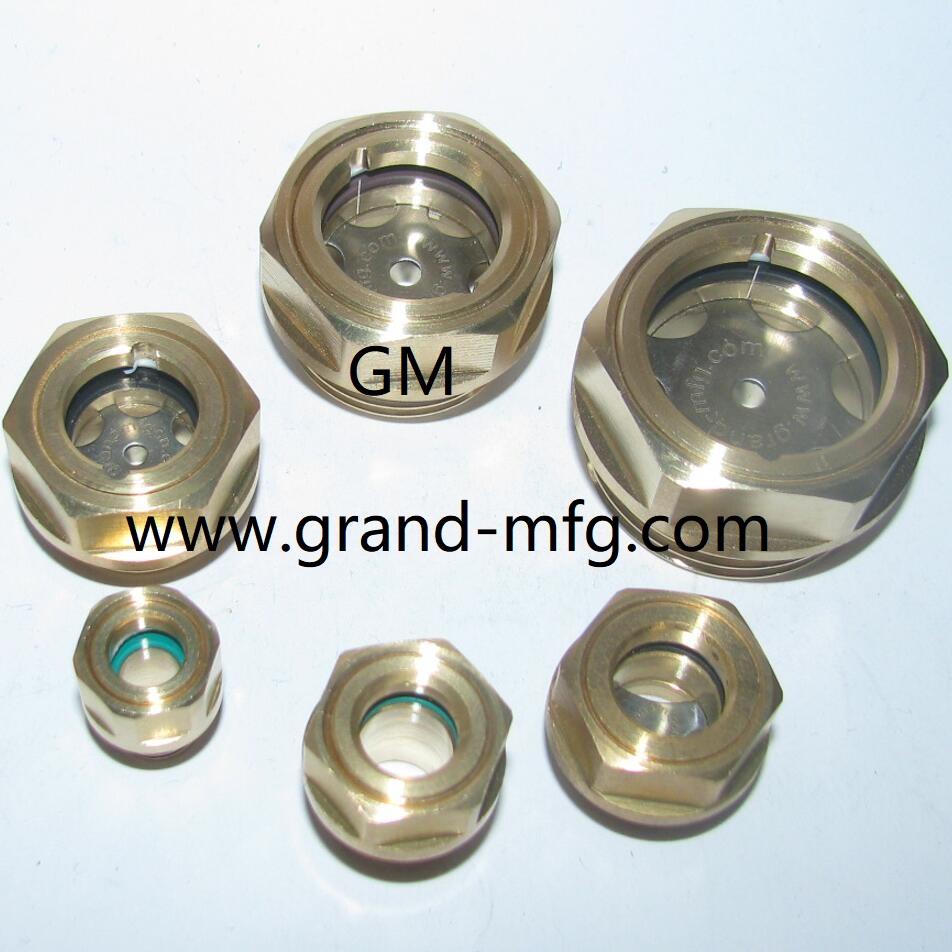

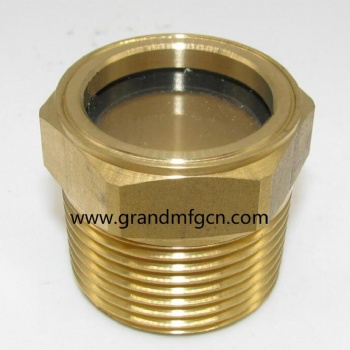

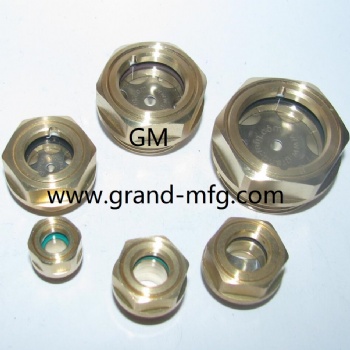

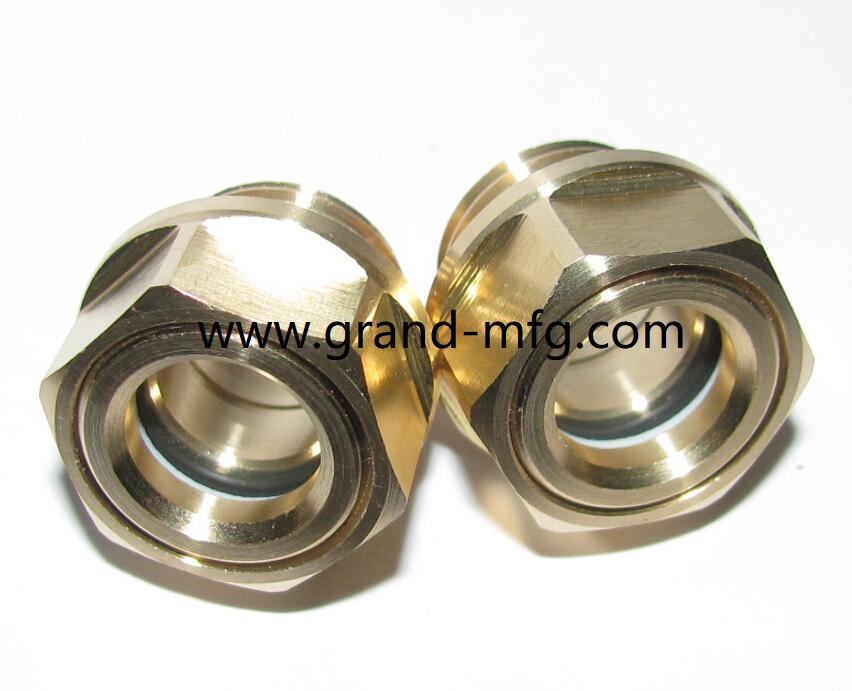

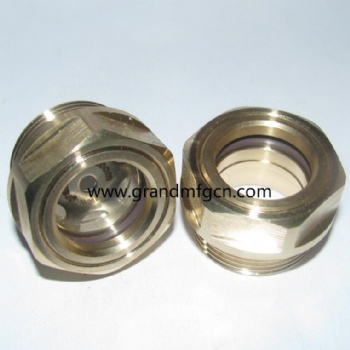

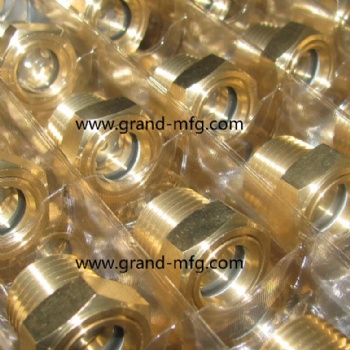

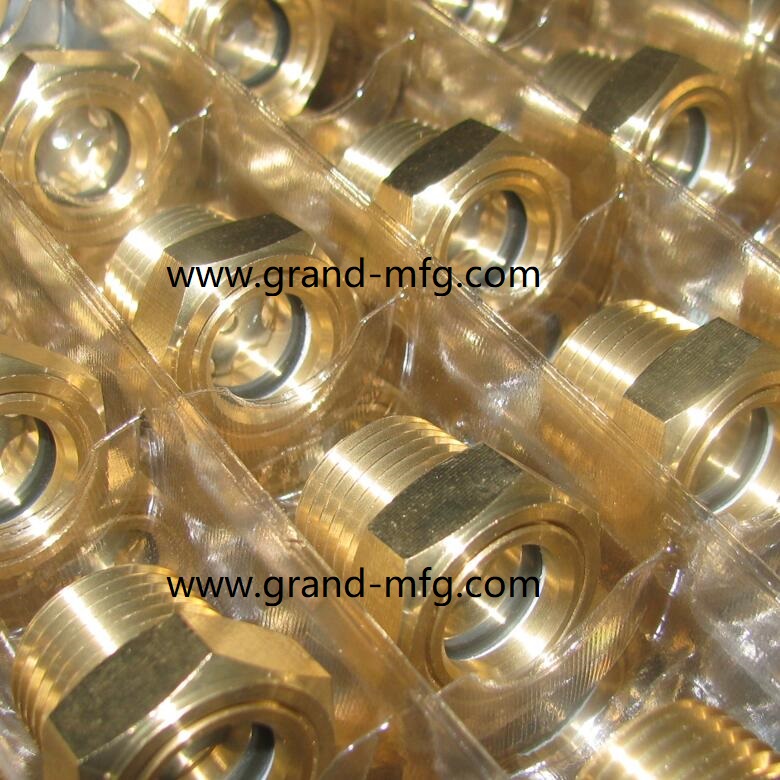

Hydraulic Diaphragm Metering Pumps Brass oil level sight glass plugs for air compressor Brass Oil level sight glass Material Body: Brass O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal Glass Thickness: 2mm to 5 mm Reflectors: Stainless Steel 304 Reflector Resist Tempreature Range:-30'C to 120'C Pressure Range: 5-10 Bar(0.5MPa to 1 MPa). Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Material Body: Brass
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
LINK TO: GO TO GRAND-MFG CATALOGUE
