Speed reducer NPT1/2 ss304 bull eye oil level sight glass

Speed reducer NPT1/2 ss304 bull eye oil sight glass gauge

Stainless Steel Oil level sight glass

Material Body: Stainless steel 304,Stainless steel 304L,
Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket，
Silicone Rubber,and Copper seal

Glass Thickness: 2mm to 8 mm

Reflectors: Stainless Steel 304 Reflector

Inquiry Now

Description

Stainless Steel Oil level sight glass

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket，Silicone Rubber,and Copper seal

Glass Thickness: 2mm to 8 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 220'C

Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).

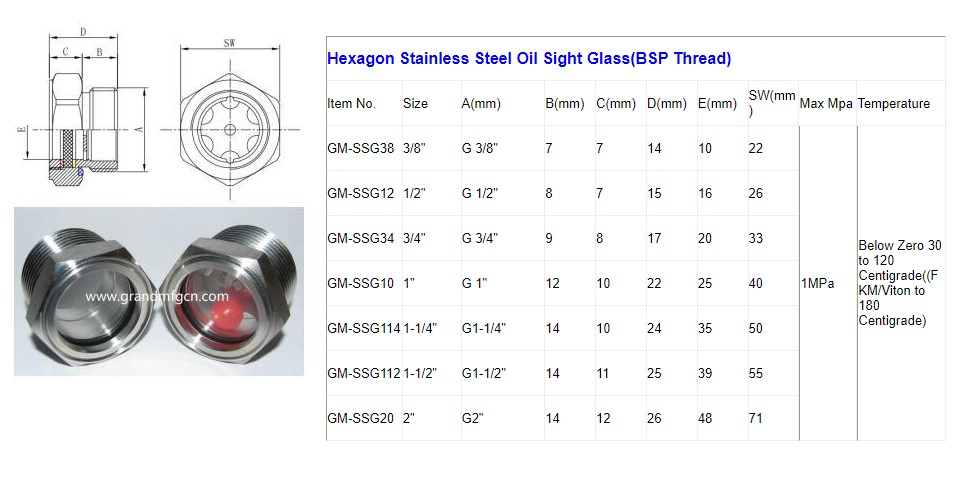

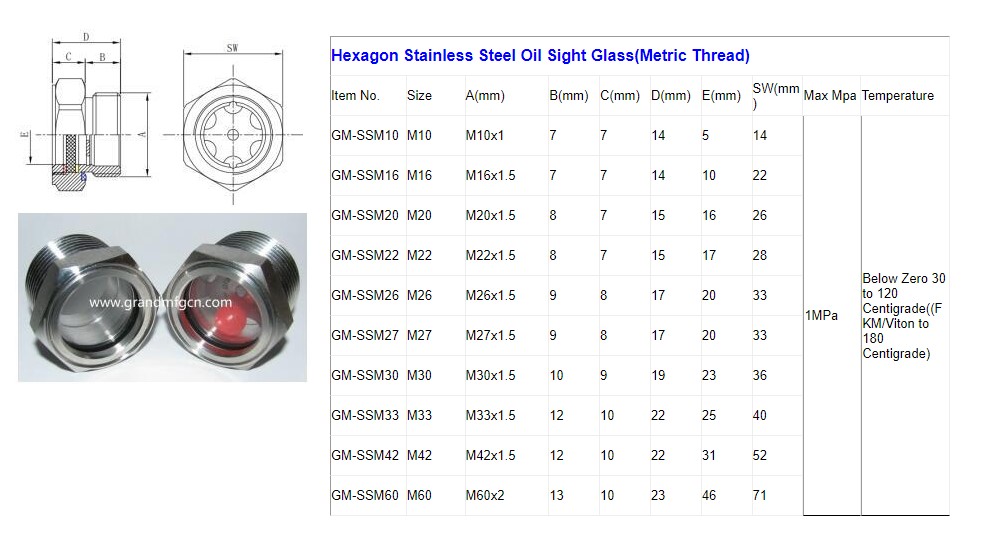

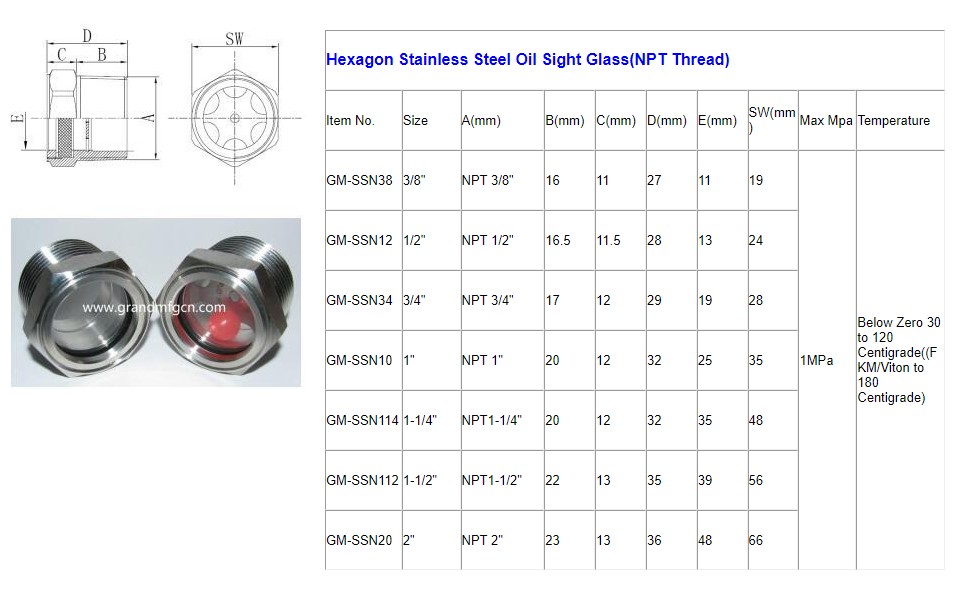

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. Metric thread stainless steel liquid sight glass.JPG
