Safety Sight Glass Assembly - Threaded Checks coolant level without removing pressure cap (fits radiators and surge tanks) Stainless steel liquid level sight glass,Brass liquid level sight glass,aluminum liquid glass oil sight gauge supplied.

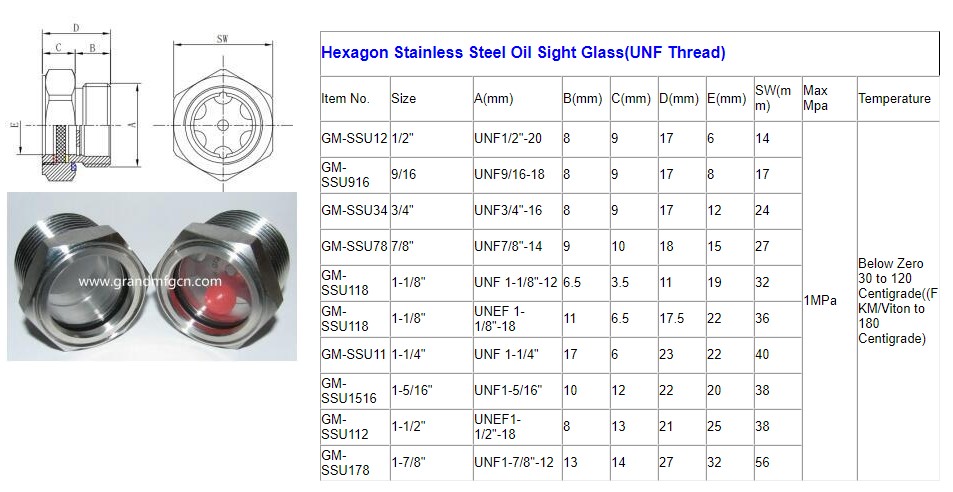

GrandMfg® Stainless Steel Oil level sight glass window plugs viewports indicator Ölschauglas
Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket，Silicone Rubber,and Copper seal
Glass Thickness: 2mm to 8 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 220'C
Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
