Domed Brass oil sight glass NPT and BSP

Brass oil level sight glass plugs for air compressor
G1/2" G3/8" G3/4" G1"
Brass Oil level sight glass used for air compressors
speed reducers gearboxes pumps roots blowers
industrial machinery heavy duty radiator liquid level sights.

Inquiry Now

Description

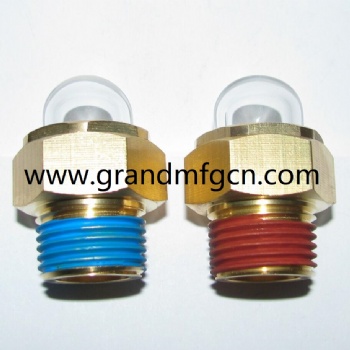

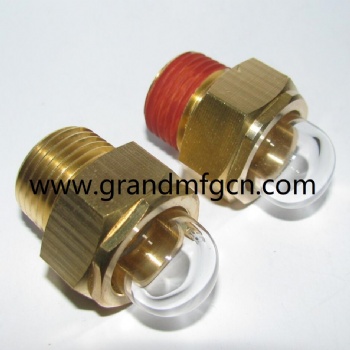

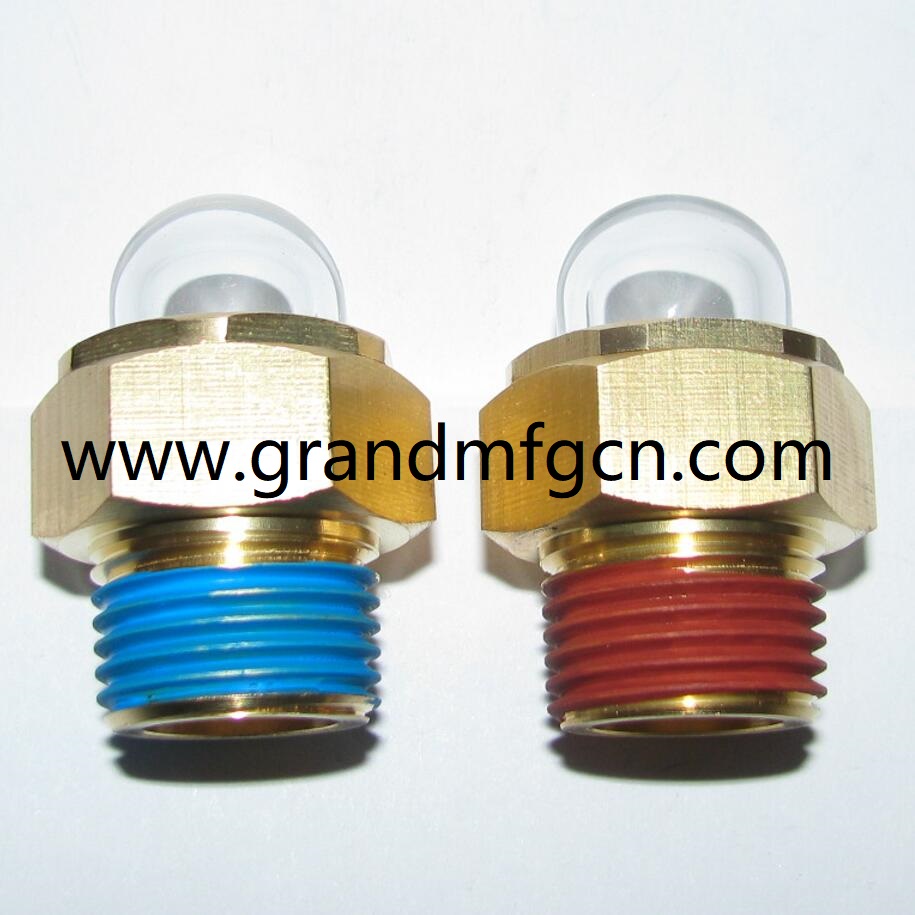

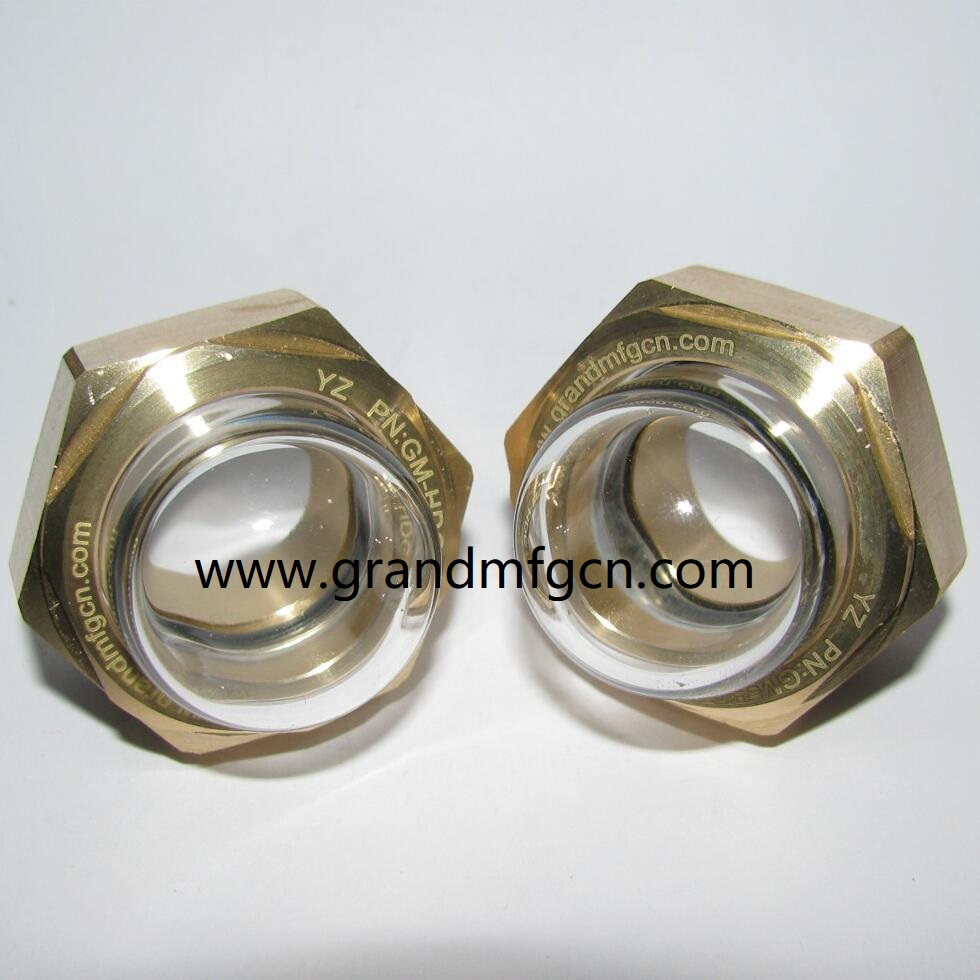

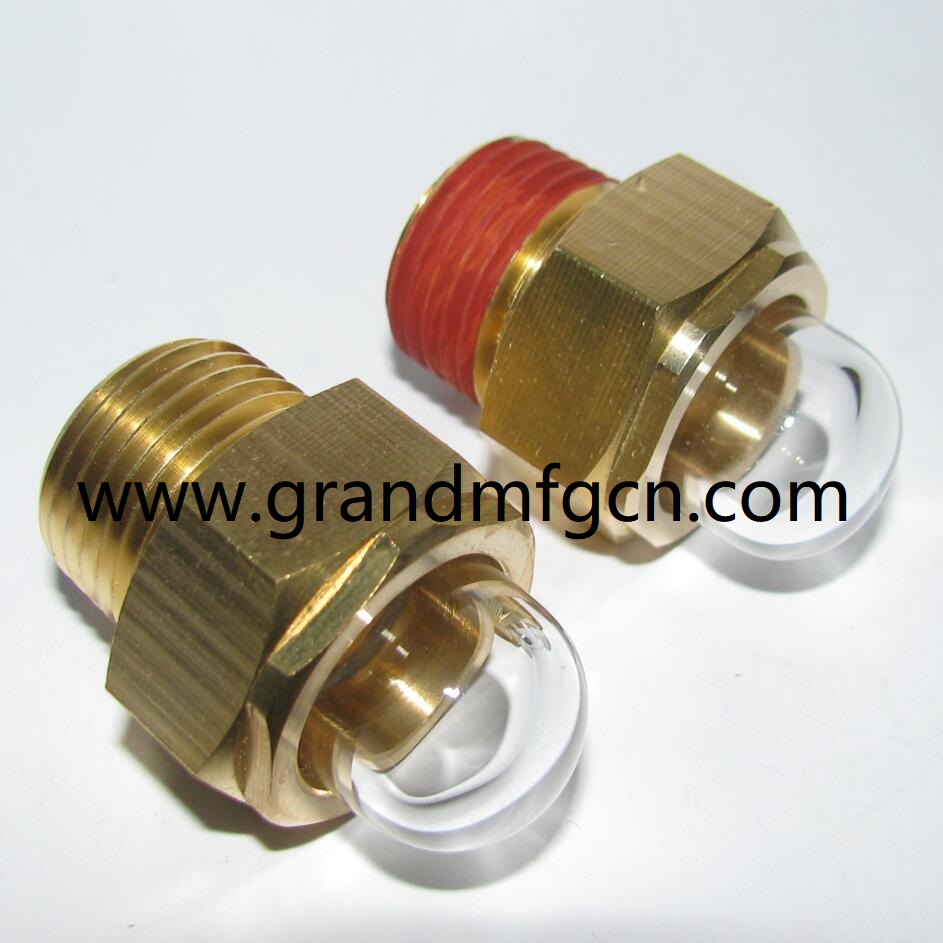

Domed Brass Oil level sight glass NPT and BSP
Material Body: Brass
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

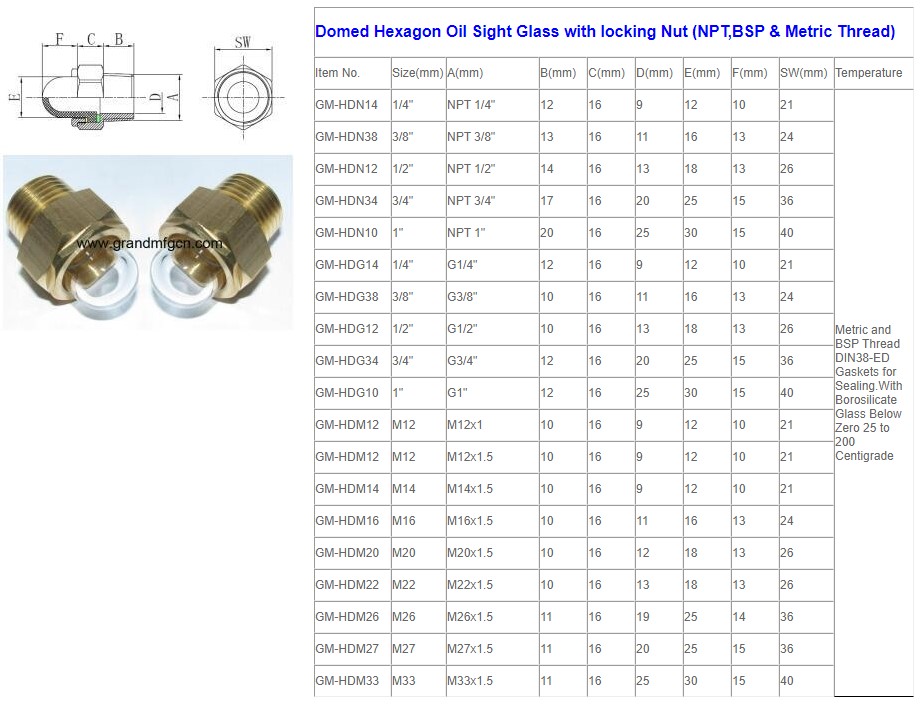

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
