Industrial 304 stainless steel NPT 3/4 inch eye level visor

Stainless Steel Oil level sight glass
Material: Stainless steel 304,SS 304L,SS316,SS316L,
Used for Pump,Oil Receivers,Gearboxes,Speed Reducer,
Heavy duty radiators surge tank,Compressor and
Power Transimission.

Inquiry Now

Description

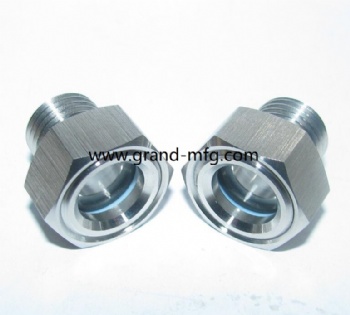

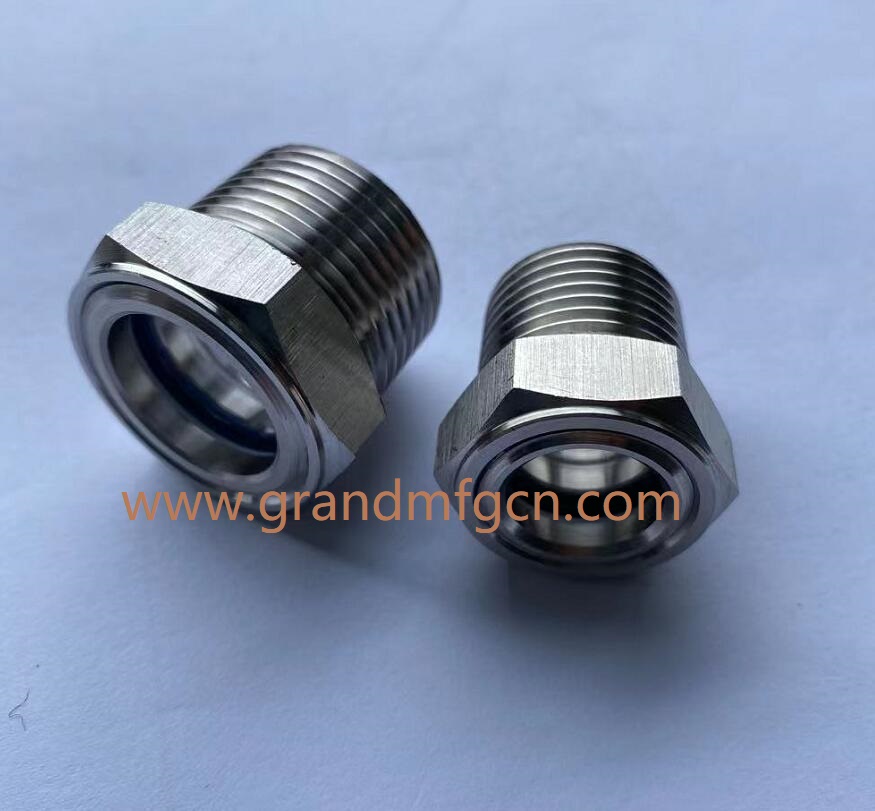

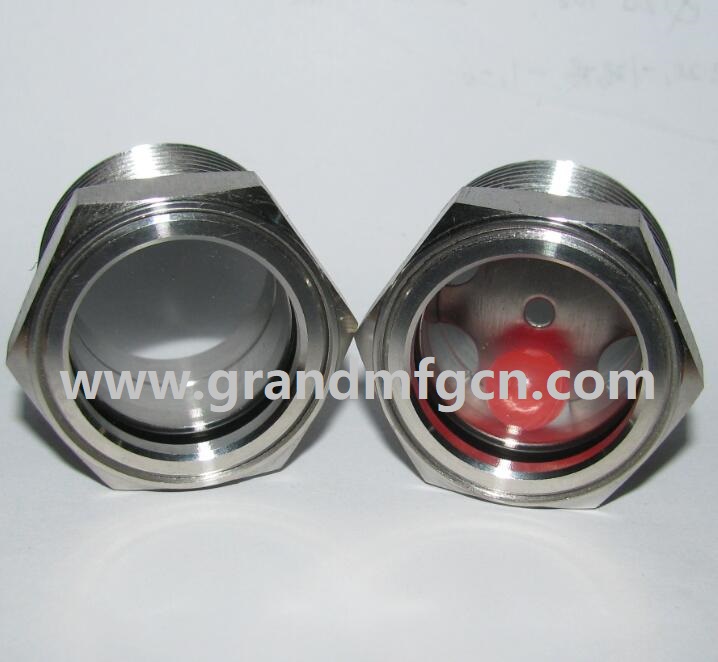

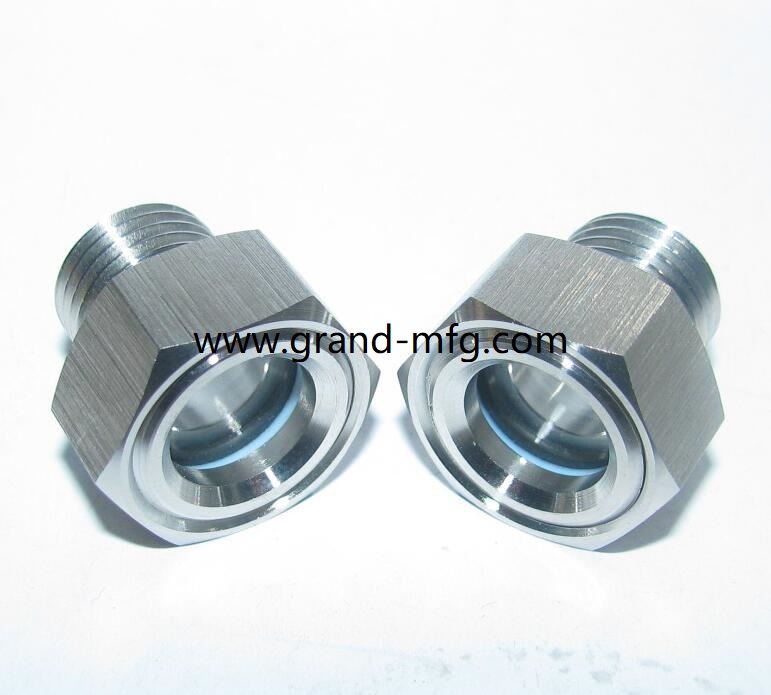

Stainless Steel Oil level sight glass

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket，Silicone Rubber,and Copper seal

Glass Thickness: 2mm to 8 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 220'C

Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

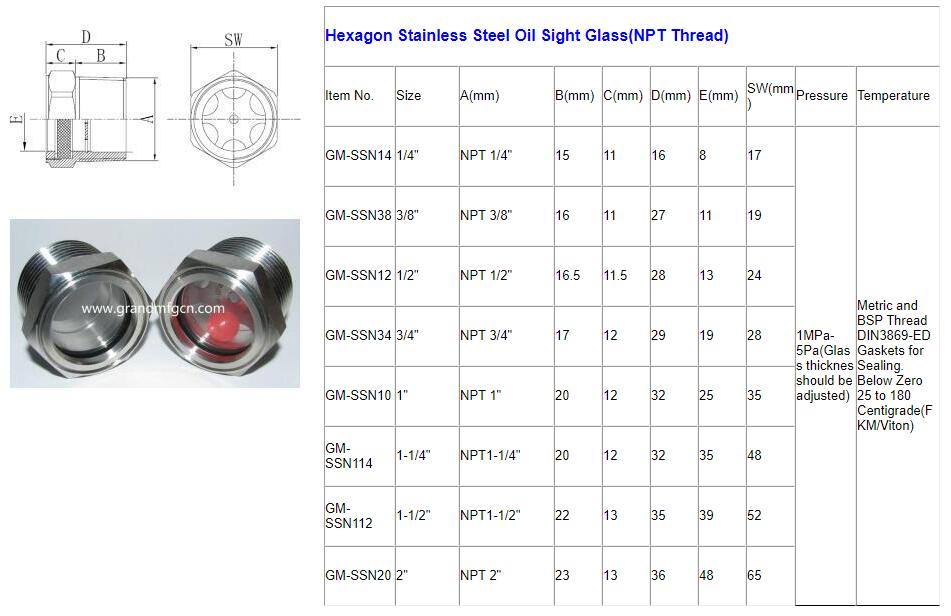

Hexagon Stainless Steel Oil Sight Glass(NPT Thread).jpg
