Pedro Gil Vacuum pumps Brass oil level sight glass G1-1/4


Brass oil level sight glass plugs for air compressor M10*1 M12*1 M16*1.5 M18*1.5 M20*1.5 M22*1.5

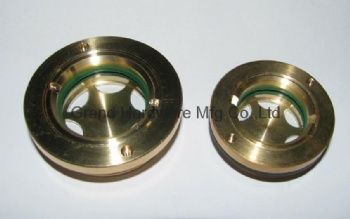

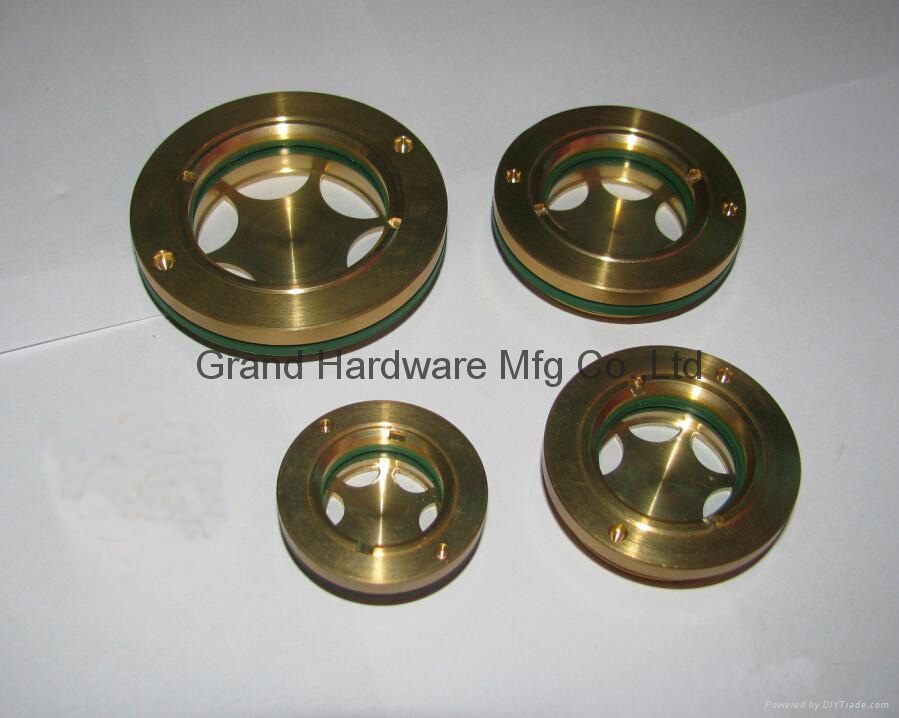

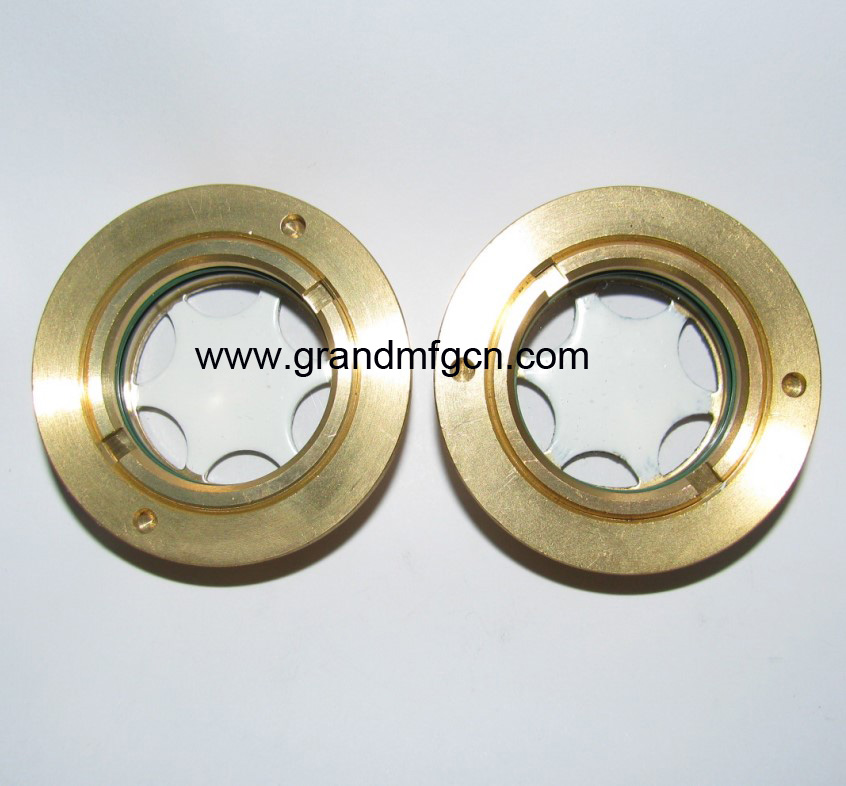

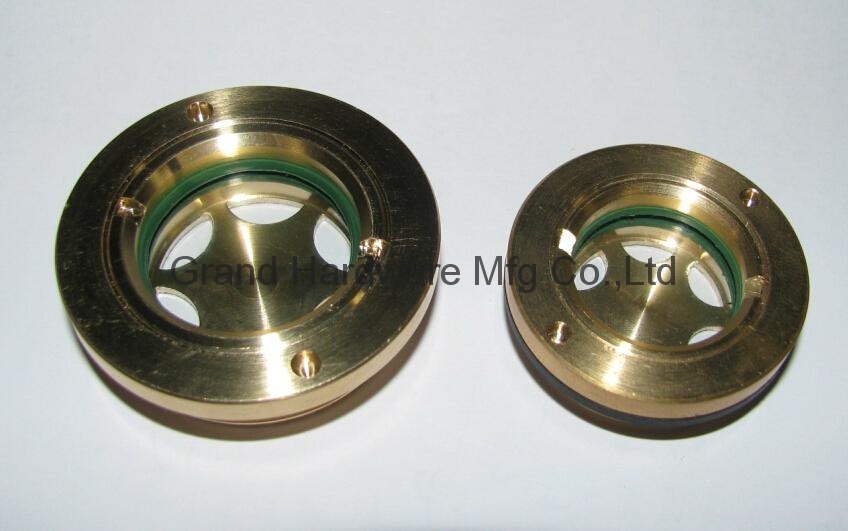

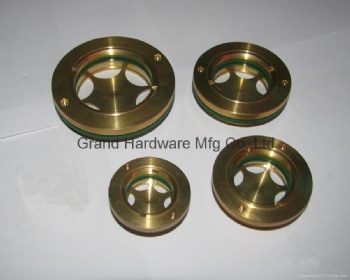

Brass Oil level sight glass
Material Body:   Brass
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
                 (Any type you can chose with reflector or without Reflector,  You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range:  5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Inquiry Now

  • 22223.JPG

  • Brass Oil level sight glass


  • Material Body:   Brass


  • O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal


  • Glass Thickness: 2mm to 5 mm


  • Reflectors: Stainless Steel 304 Reflector


  •                  (Any type you can chose with reflector or without Reflector,  You also can add float ball.)


  • Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass


  • Resist Tempreature Range:-30'C to 120'C


  • Pressure Range:  5-10 Bar(0.5MPa to 1 MPa).


  • Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)


  • Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.


  • Usage:  Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

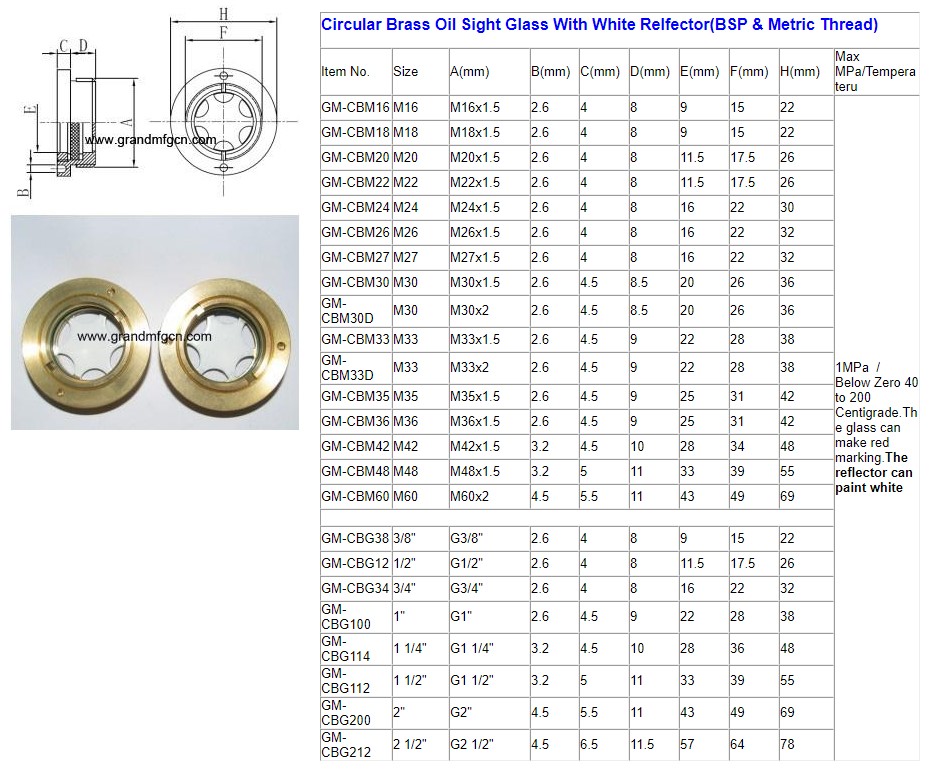

Circular Brass Oil Sight Glass With White Relfector(BSP & Metric Thread).JPG
