RADIATOR SURGE TANK COOLANT TANK SIGHT GLASS ASSEMBLY 1 1/4


Our quality aluminum sight glass updated design
used for refrigeration equipments compressor unit
roots blower hydraulic vaccum pumps to view and
observe liquid oil levels
BODAY: aluminum 6061
REFLECTOR: stainless steel ss304 ss3016
SEAL: Vtion
PRESSURE: 1-3 Mpa

Inquiry Now

We would like to supply the helpfull suggestions for the sight glass of refrigeration

equipments,industrial machinery & heavy duty trucks radiators,air compressors,

speed reducers gearbox,roots blowers.When you need your latest design selection

or update the quality solution, please contact us for more information of our brass

oil sight glass,aluminum sight glass and stainless steel liquid flow sight gauge.

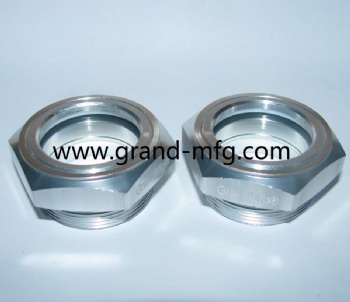

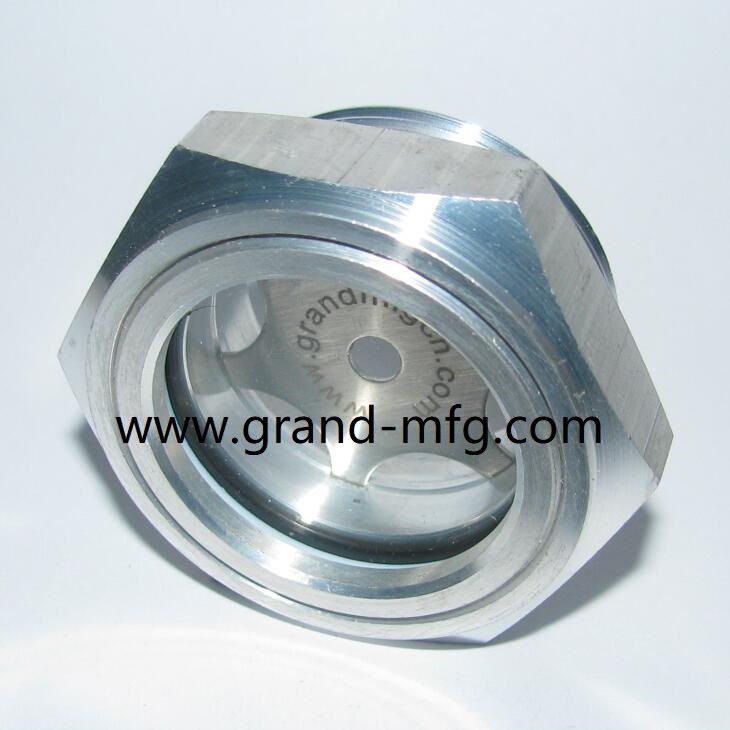

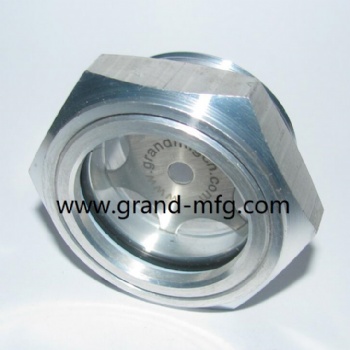

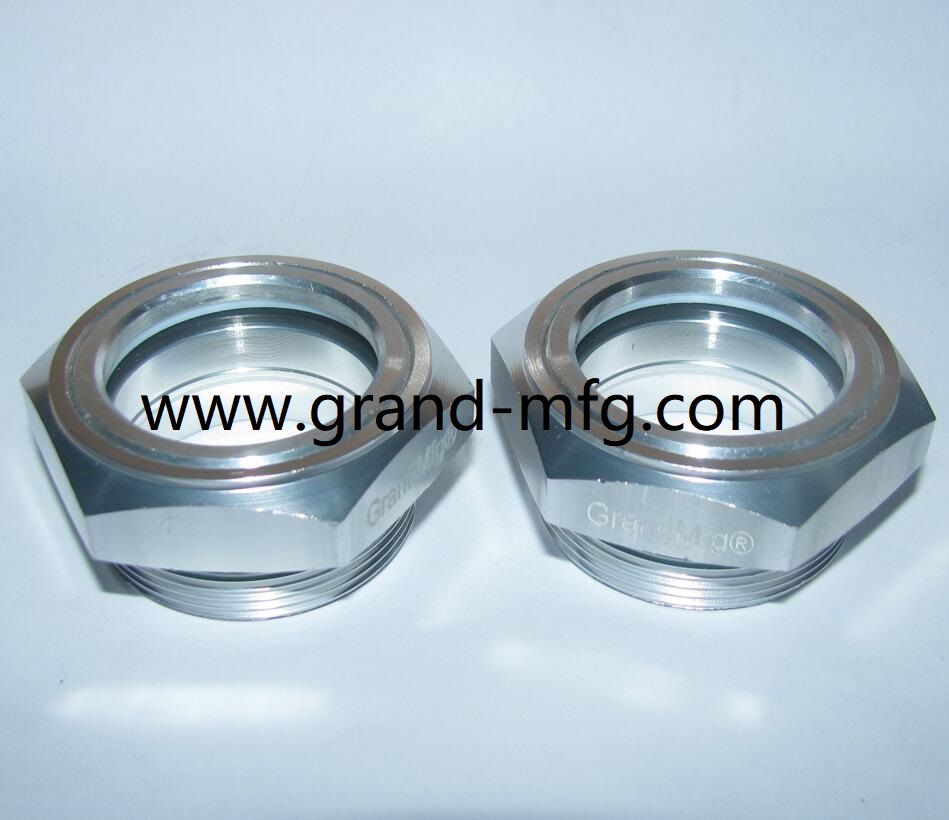

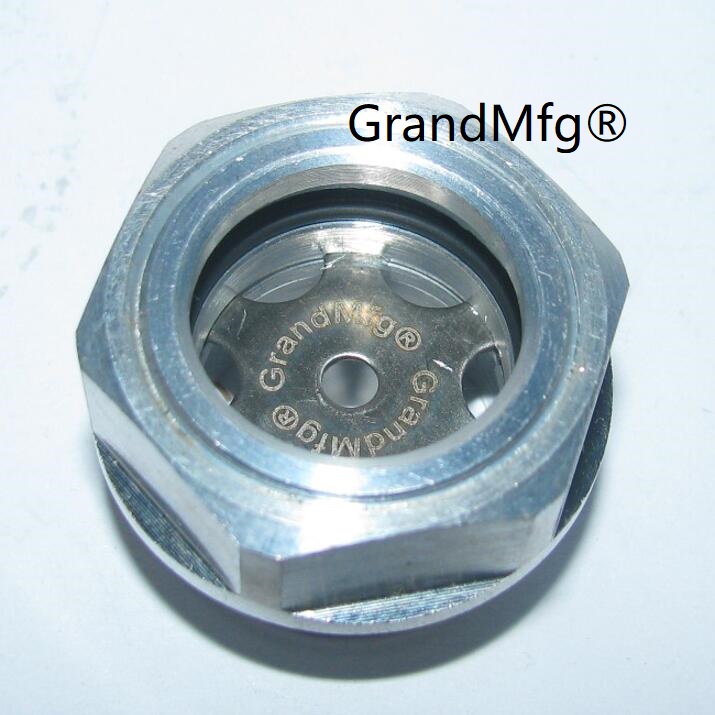

Aluminum Oil level sight glass Indicator plugs

Material Body:   Aluminum 6061 T6/Aluminum 6063

Finish: aluminum natural and aluminum oxidized color/ Anodizing color.

O-Ring: Viton,
FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 8 mm

Reflectors: Stainless Steel 304 Reflector

                 (Any type you can chose with reflector or without Reflector,  You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 128'C

Pressure Range:  5-50 Bar(0.5MPa to 5 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage:  Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.




GO TO CATALOGUE TO FIND OUT MORE HELPFUL ITEMS


Any special demands just contact us directly.Thank you.
